Transactions End-User Guide

Purpose​

Plinqx Transactions provide an auditable record of API activity processed through Plinqx in Salesforce. A transaction record helps you:

  • Confirm what was called (endpoint, HTTP method, direction).
  • Inspect the request headers and request payload.
  • Inspect the response returned to the caller.
  • Review processing outcomes (status, response code) and (where enabled) platform execution limits.
  • Reprocess a transaction to replay the same request (typically for testing and troubleshooting).
info

Note: All sensitive information, such as authorization headers, is explicitly omitted from the logs.

How to access Transactions​

  1. In Salesforce, open the Plinqx app.
  2. Select the Transactions tab in the navigation bar.
  3. Choose the required List View (for example, All).

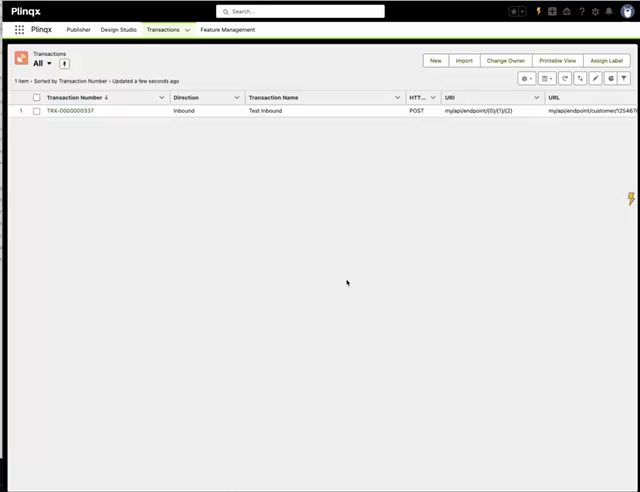

Transactions list view

Find a transaction​

From the Transactions list you can typically identify a record using:

  • Transaction Number (unique identifier)
  • Direction (Inbound/Outbound)
  • Transaction Name
  • HTTP Method
  • URL / Endpoint

Tip (admins/configurators): When troubleshooting a specific integration run, start with the transaction number and Transaction Name (for inbound, this is the name you provided during configuration). Then review the payload/response to confirm you’re looking at the correct execution.

Open and review a transaction record​

Click a Transaction Number in the list to open the transaction record.

The transaction record is split into two main areas:

  • Left panel: transaction metadata, request info, and execution/limit details
  • Right panel: Headers, Payload, and Response (expandable sections)

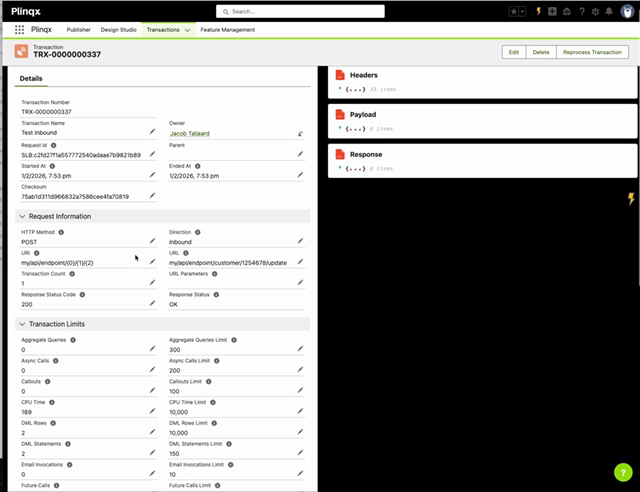

Transaction record overview

Transaction details (left panel)​

Details​

Common fields include:

  • Transaction Number - the unique reference for this transaction.
  • Transaction Name - friendly name (often derived from configuration or test naming).
  • Owner - record owner.
  • Request Id - correlation identifier for tracing a specific execution.
  • Start / End - when the transaction processing started and completed.
  • Checksum - used internally for request integrity/tracking.

Request Information​

Use this section to understand what was called:

  • HTTP Method - e.g., GET/POST/PUT.
  • Direction - typically Inbound for requests into Salesforce via Plinqx, or Outbound for calls leaving Salesforce (depending on your implementation).
  • URL - the endpoint that was invoked.
  • URL Parameters - captured parameters (if any).
  • Response Status Code - e.g., 200.
  • Response Status - human-readable status (e.g., OK).

Transaction limits (admins)​

Where enabled, this area shows execution usage and limits such as:

  • Queries, DML statements/rows
  • CPU time
  • Callouts
  • Heap size

These are useful when diagnosing failures related to Salesforce limits.

Headers (right panel)​

Expand Headers to view captured request header values.

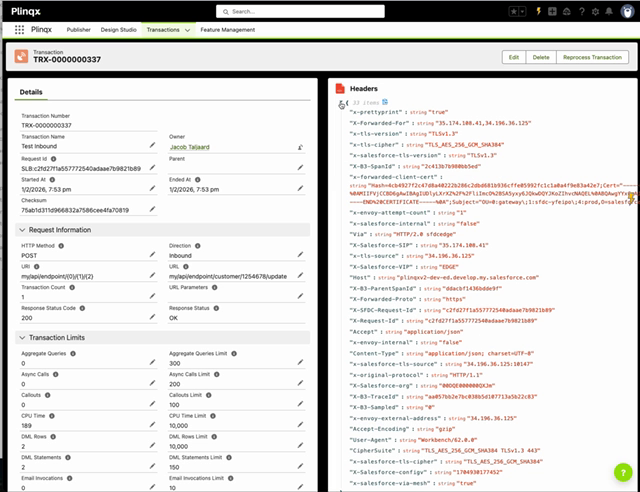

Headers expanded

What you'll use this for

  • Confirm routing details and non-sensitive headers (where relevant).
  • Validate content type / encoding.
  • Provide supporting detail when escalating issues.

Payload (right panel)​

Expand Payload to see the request body captured for the transaction (commonly JSON for REST requests).

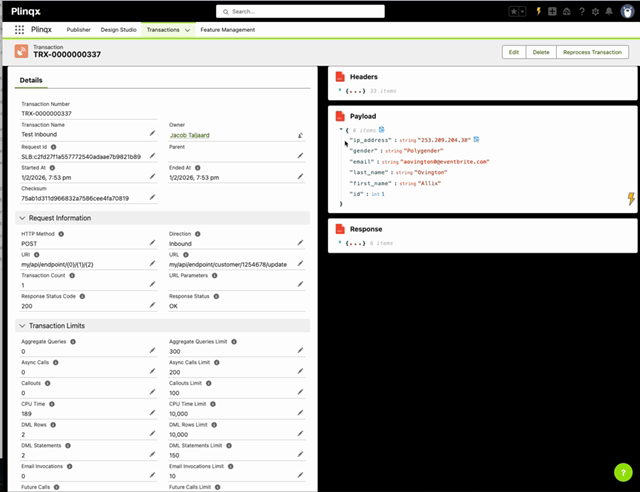

Payload expanded

What you'll use this for

  • Verify the input data that Salesforce received (or sent).
  • Confirm mapping/configuration is producing the correct structure.
  • Compare with downstream system expectations.

Response (right panel)​

Expand Response to view the response body returned.

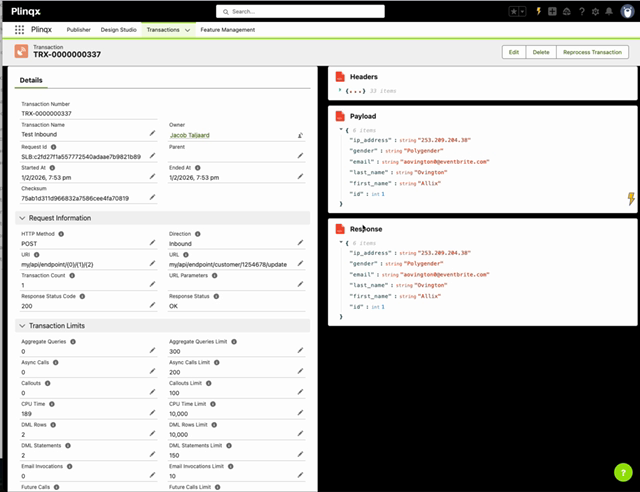

Response expanded

What you'll use this for

  • Confirm what the caller received.
  • Validate success/error structures.
  • Compare expected vs actual output during testing.

Reprocess a transaction (replay)​

If you need to replay the same request (for example after configuration changes):

  1. Open the transaction record.
  2. Click Reprocess Transaction.
  3. Wait for the record to refresh/load.
  4. Review updated timestamps/status and re-check Payload/Response.

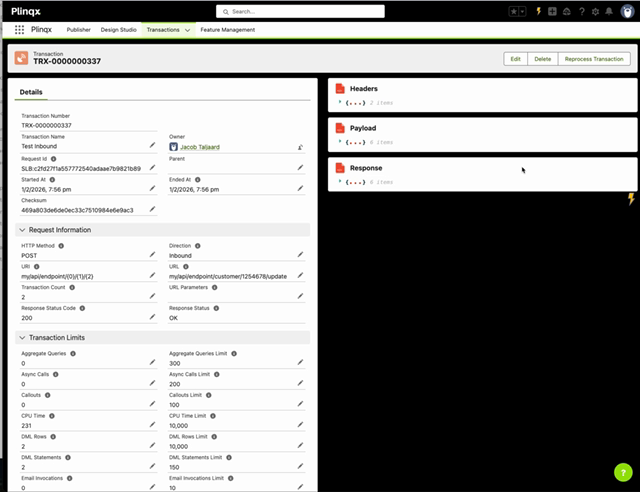

After reprocessing a transaction

Notes

  • Reprocessing is typically used for testing and troubleshooting.
  • Depending on your configuration, reprocessing may increment a transaction count and/or create additional logs.

Near the bottom of the record you may see related lists such as:

  • Files - attachments related to the transaction (if used)
  • Logs - additional processing logs (if enabled)
  • Transactions - child/related transactions (implementation-specific)

Use these when deeper diagnostics are required.

Troubleshooting tips​

  • 200 OK but unexpected behaviour: Compare Payload and Response to what the downstream system expects.
  • No response body / empty payload: Confirm the caller actually sent a body, and check headers for content-type.
  • Intermittent failures: Use Start/End time + Request Id to correlate across logs.
  • Limit-related errors (admins): Review Transaction limits for CPU, queries, or heap pressure, and adjust configuration/implementation accordingly.

Glossary​

  • Inbound: Requests coming into Salesforce/Plinqx from an external system.
  • Outbound: Requests sent from Salesforce/Plinqx to an external system.
  • Payload: The request body (often JSON).
  • Headers: HTTP metadata sent with the request/response (auth, content type, etc.).
