Flow Templates

Introduction​

Plinqx includes a comprehensive suite of Flow Templates within its package, tailored for service interfaces such as URL and Email services.

Additionally, a variety of Packaged Utility Flows are available to aid your transformations within the Design Studio. While this library of "mini" flows will expand in future updates, you can also create your own utility flows as outlined in the Utility Flows section.

You may see the following error when saving a flow based on a template:

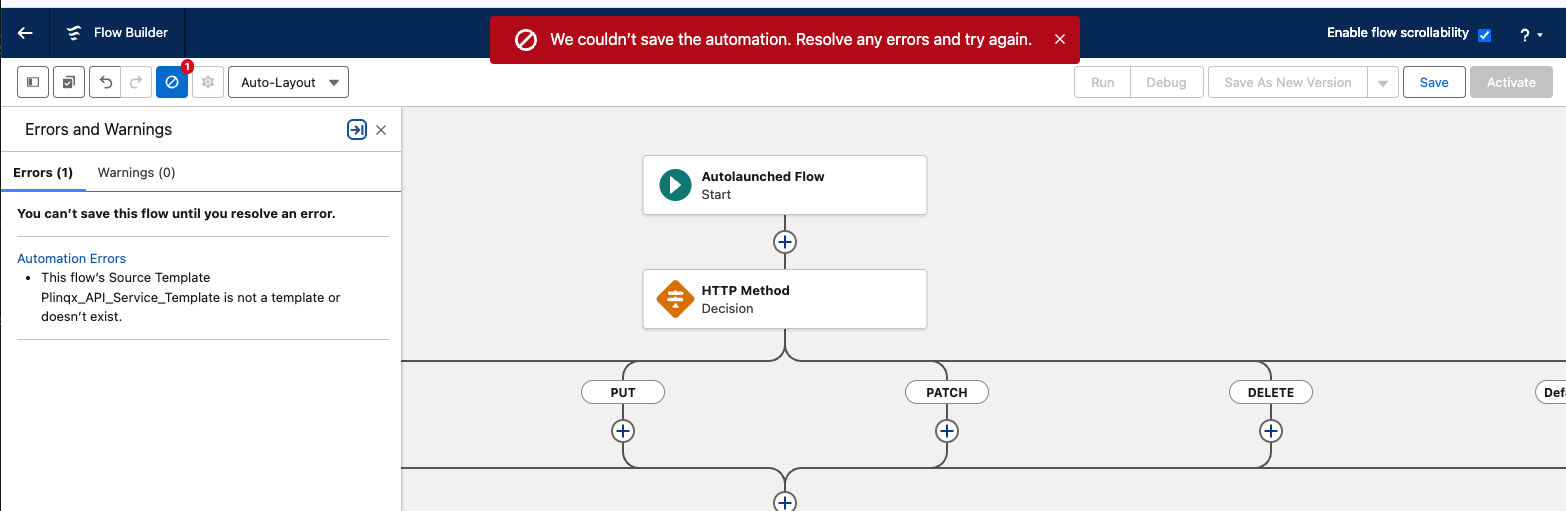

Flow Template Error

To fix this:

  1. Save the flow.
  2. In the Save popup, click Show Advanced.
  3. In the Advanced section, use the Source Template dropdown to select Plinqx API Service Template or Plinqx Email Service Template, depending on your flow requirement.
  4. Click Save.

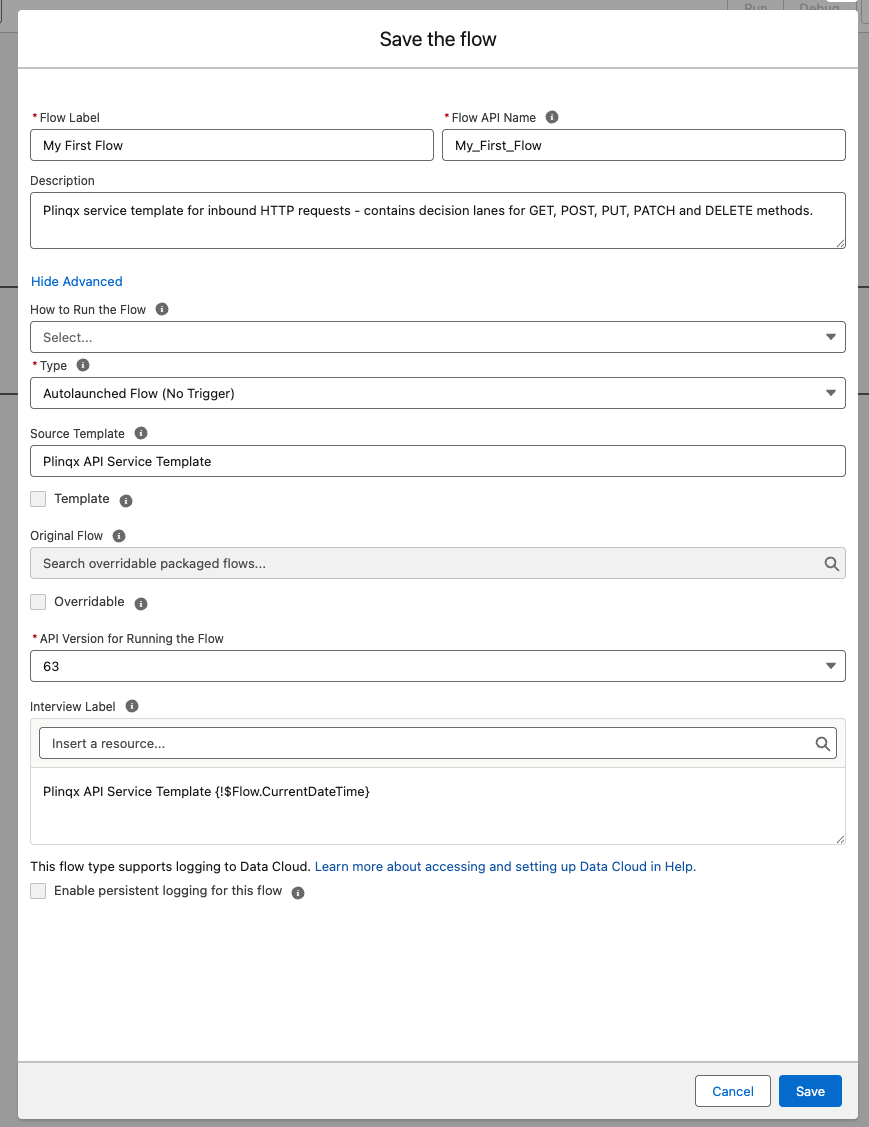

Flow Template Correction
