Plinqx Publisher Named Credentials

info

Available: Base

Overview​

Plinqx Publisher uses Salesforce Named Credentials (and related External Credentials) to securely store:

  • The base URL for an external system
  • The authentication mechanism (for example, Basic Auth, OAuth 2.0, or JWT)
  • Optional secret values (for example, API keys) stored encrypted

Once configured, a Named Credential can be referenced from Plinqx Publisher Inbound/Outbound configurations instead of hard-coding URLs and credentials in endpoints.

Prerequisites​

Access​

You need access to:

  • The Plinqx app in Salesforce
  • The Publisher tab
  • Salesforce Setup (to review/edit the created Named Credential)
  • Permission to create/modify Named Credentials and External Credentials in Salesforce Setup
  • Any Plinqx permission sets required to access Publisher -> Named Credentials

Where Named Credentials are used in Publisher​

Publisher endpoints can reference a Named Credential. For example, an Outbound endpoint detail includes a NamedCredential value that determines what base URL and authentication will be used when the callout runs.

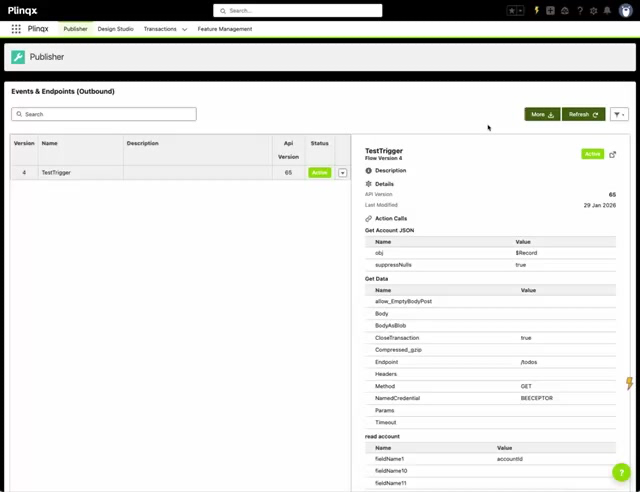

Outbound endpoint details showing NamedCredential

Create a Named Credential from Plinqx Publisher​

Open Named Credentials in Publisher​

  1. Open the Plinqx app.
  2. Navigate to Publisher.
  3. Open Events and Endpoints (Named Credentials).

Tip: This screen lists the Named Credentials created via the Plinqx Publisher experience.

Start the wizard​

  1. Click New.

Step 1 - Authentication Details​

In Named Credential Setup, configure the authentication approach.

Fields shown:

  • Authentication Protocol (e.g., Custom, Basic Authentication, OAuth 2.0, JWT, etc.)
  • Principal Type
  • Principal Name

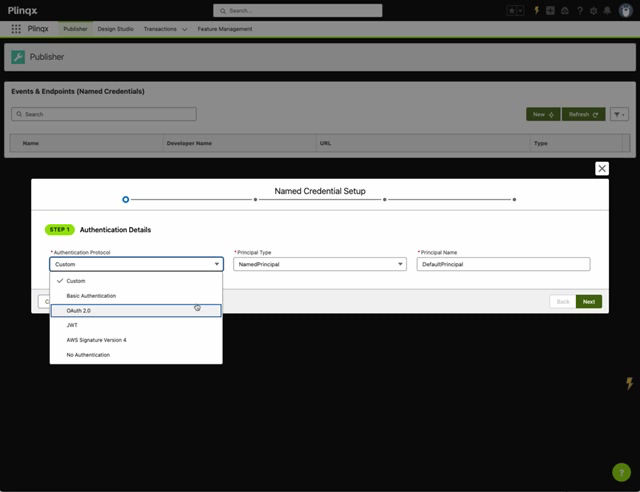

Step 1 - Authentication Details

Click Next to continue.

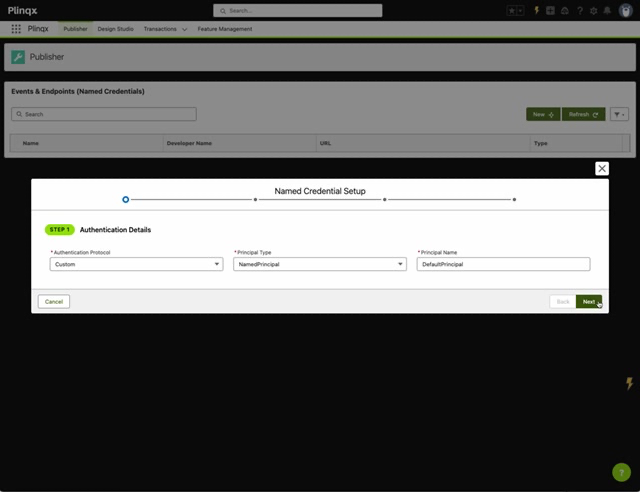

Step 1 - Ready to proceed

Step 2 - External Credential​

Set the External Credential that will be linked to the Named Credential.

Fields shown:

  • External Credential Label
  • Developer Name

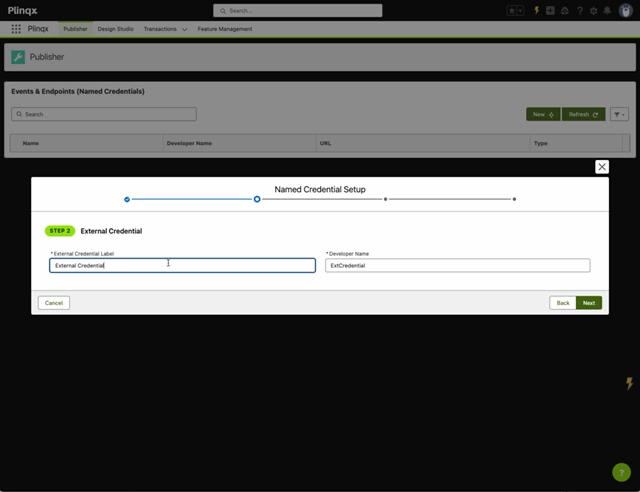

Step 2 - External Credential

Click Next to continue.

Step 3 - Named Credential​

Configure the Named Credential record.

Key fields:

  • Named Credential Label
  • Developer Name
  • Base URL (the root URL for the external system, e.g., https://api.example.com)

Common options:

  • Generate Authorization Header
  • Allow Merge Fields in Header
  • Allow Merge Fields in Body

Optional Credential Secret:

  • Parameter Name (e.g., ApiKey, password)
  • Secret Value
  • Store Encrypted

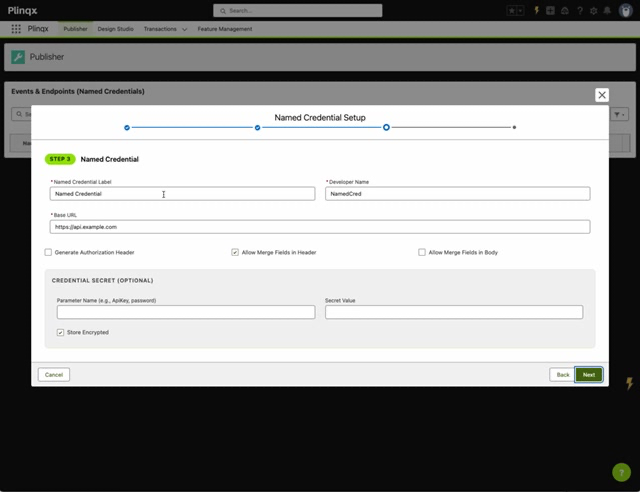

Step 3 - Named Credential

Click Next to continue.

Step 4 - Review and Create​

Review the summary (protocol, principal, external credential, named credential, base URL) and click Create.

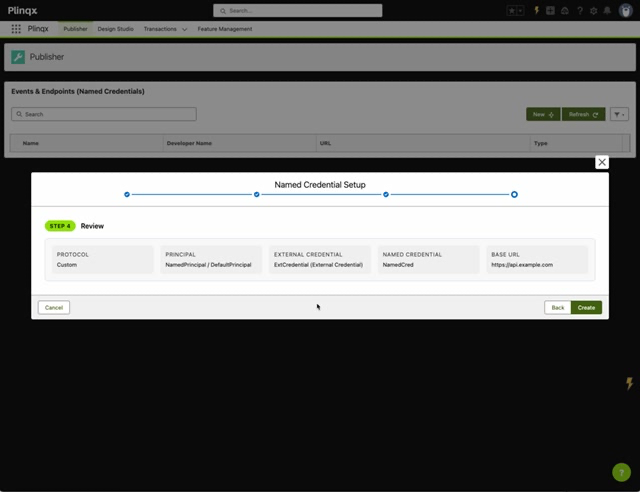

Step 4 - Review

Confirm the record is created​

After creation, Publisher shows a success toast and the Named Credential appears in the list.

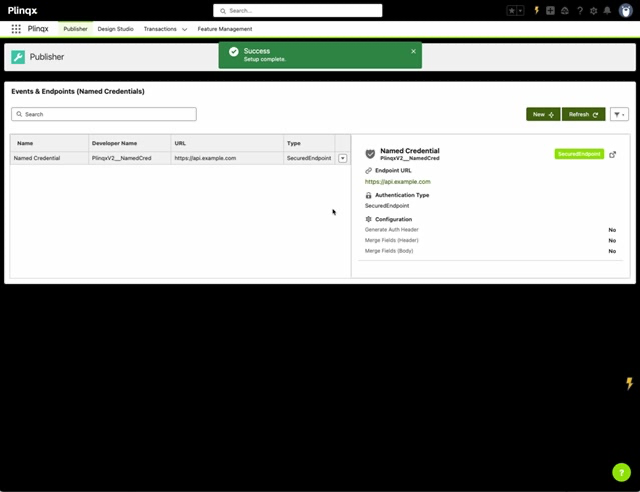

Named Credential created successfully

Verify and manage the Named Credential in Salesforce Setup​

Publisher creates a standard Salesforce Named Credential that you can manage from Setup.

  1. Open Setup.
  2. Navigate to Named Credentials (Setup -> Named Credentials).
  3. Open the Named Credential created by Publisher.

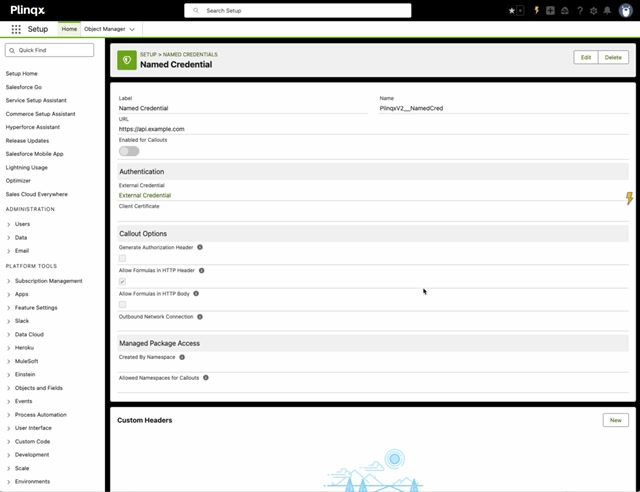

Named Credential record in Salesforce Setup

Edit details (if required)​

Use Edit to update label, name, URL, authentication linkage, callout options, and managed package access.

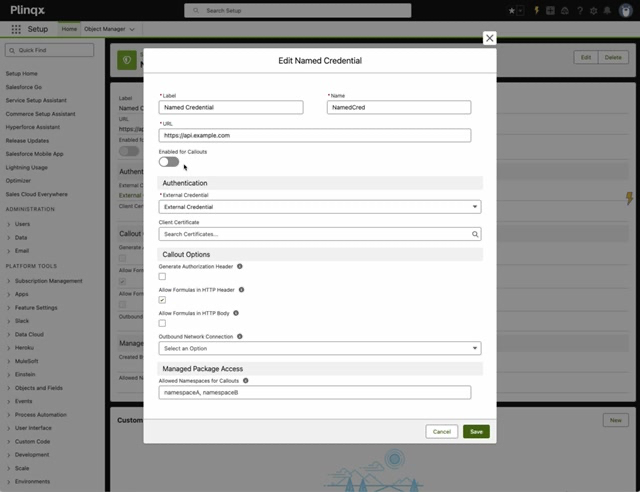

Edit Named Credential

After saving, you'll see a confirmation toast.

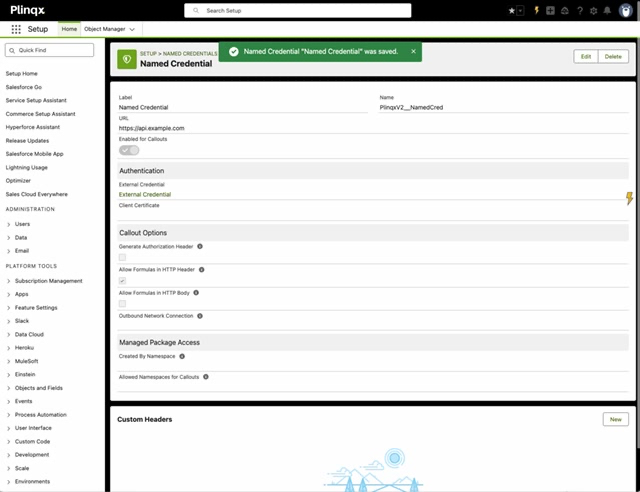

Named Credential saved

Best practices​

  • Use stable base URLs: create separate Named Credentials per environment (DEV/UAT/PROD).
  • Keep secrets out of endpoint definitions: store API keys/passwords in the credential where possible.
  • Least privilege: restrict creation/edit access to admins/configurators.
  • Consistent naming: adopt a convention, for example: EXT_<System>_<Env>.

Troubleshooting​

The Named Credential doesn't appear in Publisher​

  • Click Refresh on the Named Credentials list.
  • Confirm you have access to the relevant Plinqx Publisher screen and permission sets.

Callouts fail after configuration​

  • Confirm the Base URL is correct.
  • Confirm authentication protocol and principal settings match the target system.
  • Validate any required secrets/headers are stored and referenced correctly.

"Unauthorized" / "401" errors​

  • Re-check the authentication details in Setup -> Named Credentials.
  • If using API key style auth, ensure the key is present in the secret field or in the configured header mechanism.
